Ladder type 5 2.52m EN81-20 max pit depth 1.30 m incl wall fastening with contact & floor attachement
Pit ladder type 5
Length - 2.52 m
Max. pit depth - 1.30 m
Scope of delivery:
Monitoring switch IP67, door sill holder with levelling
sheets, 3m knotted chain, floor safety device, wall
fastening, mounting material.

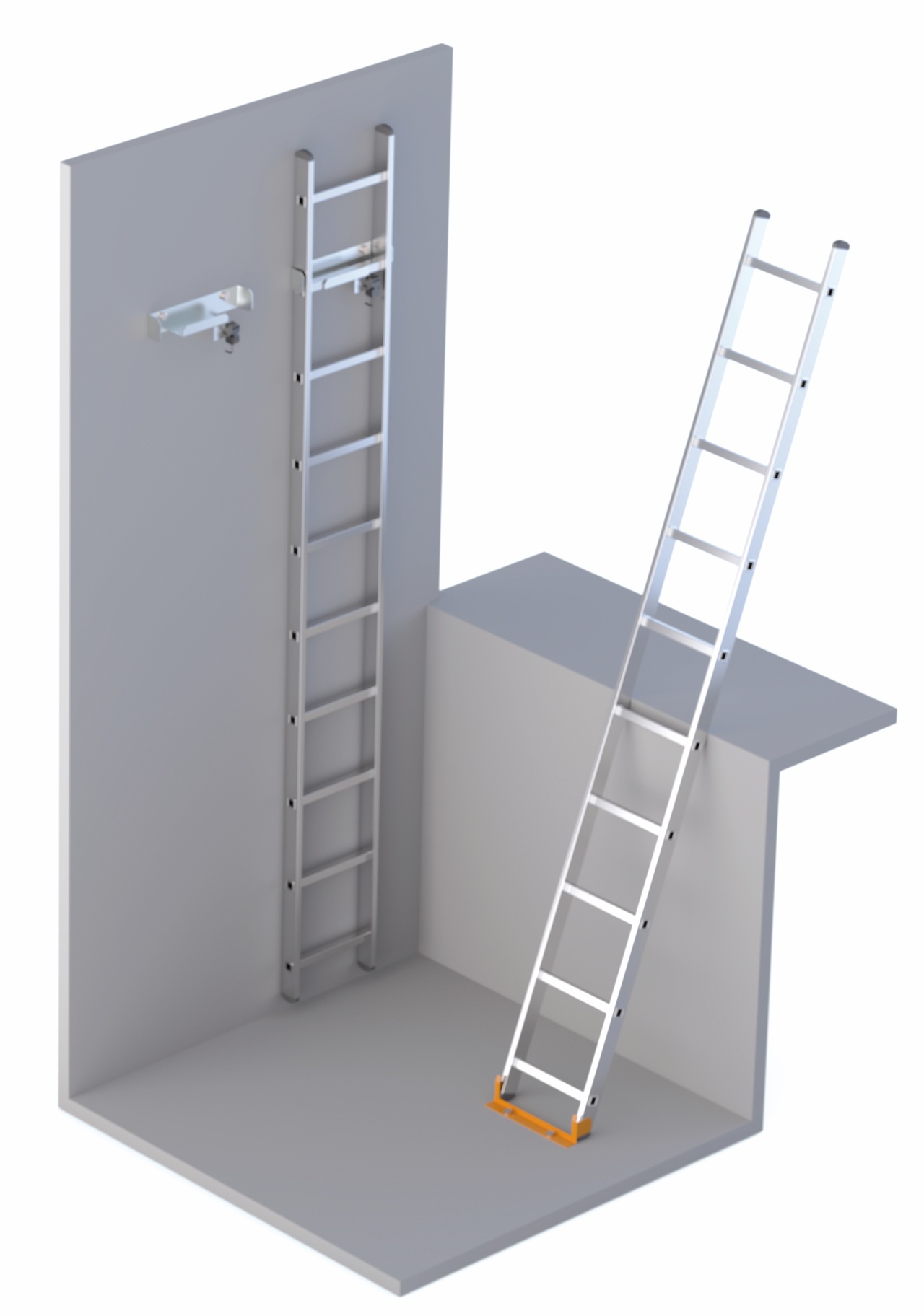

Typical application of ladder type 5:
The floor safety device and the door sill holder
guarantee a stable ladder position.
The ladder has to be set up with an angle of 65°-75°
so a tilting backwards is avoided.
The door sill holder can be fastened to the door sill by
means of the accompanying bolt, so that the assembler
does not have to secure the revolving landing door
additionally.
-
Specification
Length 2,52 m -
Description
Pit ladder type 5
Length - 2.52 m
Max. pit depth - 1.30 mScope of delivery:
Monitoring switch IP67, door sill holder with levelling
sheets, 3m knotted chain, floor safety device, wall
fastening, mounting material.Typical application of ladder type 5:
The floor safety device and the door sill holder
guarantee a stable ladder position.
The ladder has to be set up with an angle of 65°-75°
so a tilting backwards is avoided.
The door sill holder can be fastened to the door sill by
means of the accompanying bolt, so that the assembler
does not have to secure the revolving landing door
additionally.
